Materialize is a streaming database for real-time applications. Materialize accepts input data from a variety of streaming sources (like Kafka, redpanda), data stores and databases (like S3 and Postgres), and files (like CSV and JSON), and lets you query them using SQL. In this article we will see how to initialize and configure a new dbt project for Materialize database.

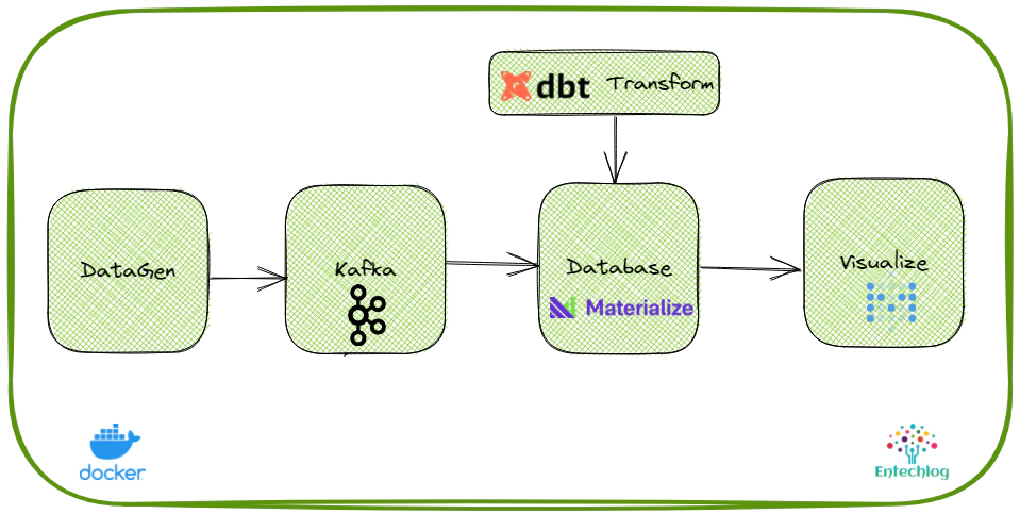

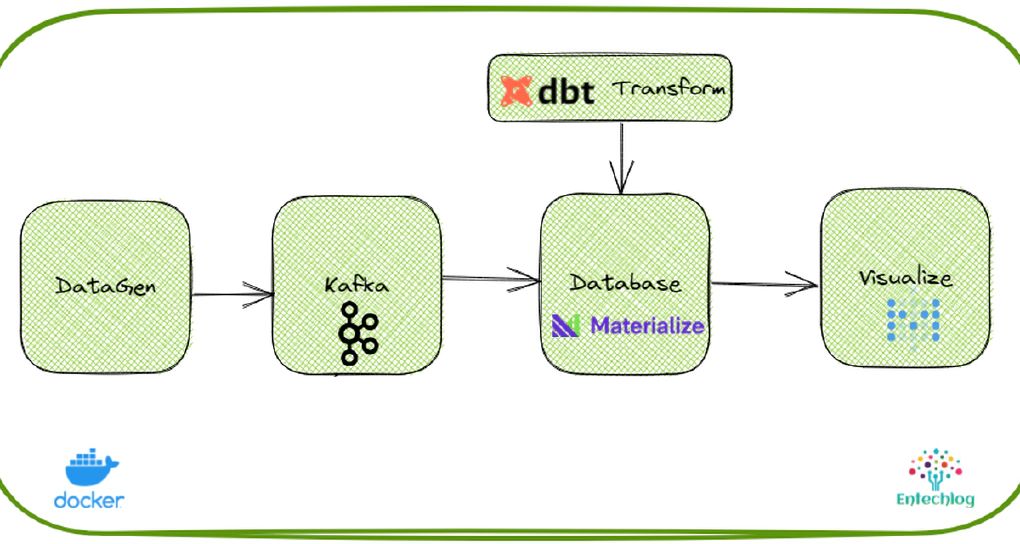

Code used in this article can be found here. We will use Kafka datagen to generate mock user data, dbt to create source, materialized views in Materialize database and Metabase to create dashboards.

Prerequisite

Download and install docker for your platform. Click here for instructions

Start containers

Create the infrastructure (Kafka, Materialize, dbt, Metabase) required for this demo using Docker containers.

Clone dbt-example repo
Open a new terminal and cd into dbt-docker directory. This directory contains infra components for this demo
```
cd dbt-docker
```
Create a copy of .env.template as .env. This contains all environment variables for docker, but we don’t have any variables which should be changed for the purpose of this demo
Start dbt container by running
```
docker-compose up -d --build
```

Start Materialize container by running

docker-compose -f docker-compose-materialize.yml up -d --build

Now we should have all the components required for this demo up and running as docker containers.

Validate containers

Validate the containers by running
```
docker ps
```
SSH into the materialize cli container by running
```
docker exec -it mzcli /bin/bash
```
Connect to materialize DB from cli container and validate materialize by running
```
psql -U materialize -h materialized -p 6875 materialize
show objects;
```
If you change the credentials in .env then please make sure to use them
SSH into the dbt container by running
```
docker exec -it dbt /bin/bash
```
Validate dbt and materialize plugin is installed correctly by running
```
dbt --version
```

Create dbt project

cd into your preferred directory
```
cd /C/
```
Create dbt project by running
```
dbt init dbt-materialize
```

Configure dbt profile

Navigate into dbt-materialize directory, create a new dbt profile file profiles.yml and update it with Materialize database connection details

dbt-materialize:
  target: dev
  outputs:
    dev:
      type: materialize
      threads: 1
      host: materialized
      port: 6875
      user: materialize
      pass: password
      dbname: materialize
      schema: public

Configure dbt project

Edit the dbt_project.yml to connect to the profile which we just created. The value for profile should exactly match with the name in profiles.yml
From the project directory, run dbt-set-profile to update DBT_PROFILES_DIR.

dbt-set-profile is alias to unset DBT_PROFILES_DIR && export DBT_PROFILES_DIR=$PWD
Update name in dbt_project.yml to appropriate project name (say dbt_materialize_demo)
Validate the dbt profile and connection by running
```
dbt debug
```

dbt setup

Delete the contents from data, macros, models, tests and snapshots directories to follow along this demo
Lets also add couple of dbt variables for kafka and schema registry endpoints. To define variables in a dbt project, add a vars config to dbt_project.yml file
```
vars:
  kafka_broker: 'broker:9092'
  kafka_schema_registry: 'http://schema-registry:8081'
```

Source

Source represent a connection to the data you want Materialize to process, as well as details about the structure of that data. Materialize source is not same as dbt sources

We will use a kafka topic as source for this demo. Materialize sources are defined using sql

Copy the source sql from dbt-materialize\demo-artifacts\models\source to dbt-materialize\models\source. Here is an example of source configuration

{{ config(
    materialized = 'source',
    tags = ["source","kafka"]
) }}

{% set source_name %}
    {{ mz_generate_name('src_kafka__users') }}
{% endset %}

CREATE SOURCE {{ source_name }}
FROM KAFKA BROKER {{ "'" ~ var('kafka_broker') ~ "'" }}
TOPIC 'users'
FORMAT AVRO
USING CONFLUENT SCHEMA REGISTRY {{ "'" ~ var('kafka_schema_registry') ~ "'" }}
INCLUDE TIMESTAMP as event_timestamp

Review or update the schema and default dbt materialized configuration for source in dbt_project.yml.

models:
  dbt-materialize:
    source:
      +materialized: source
      schema: source

Create the source by running below command
```
dbt run --model tag:source --target dev
```
Sources will created with public_ prefix instead of the schema name which was specified in the configuration. To change this, we will override the dbt macro generate_schema_name which is responsible to generate schema names.

Macros

Macros are pieces of code that can be reused multiple times.

Copy the macros from dbt-materialize\demo-artifacts\macros\utils to dbt-materialize\macros\utils
Macro generate_schema_name uses the custom schema when provided. In this case macro helps to create schema name without the prefix.
Recreate sources by running below command
```
dbt run --model tag:source --target dev
```
Now source will be created in correct schema without the public_ prefix

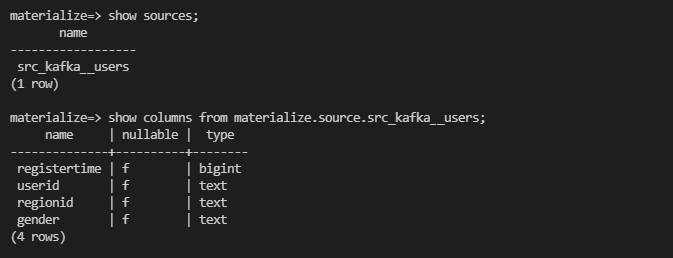

Validate the sources by running below command from the Materialize DB CLI container

show sources in materialize.source;
show columns from materialize.source.src_kafka__users;

Models

Model is a select statement. Models are defined in .sql file. Materialize supports following dbt materializations for models.

✅ source
✅ view
✅ materializedview
✅ index
✅ sink
✅ ephemeral

Create view from the source. Non-materialized view doesn’t store the results of the query but simply provides an alias for the embedded SELECT statement

Copy the model definition from dbt-materialize\demo-artifacts\models\staging\ to dbt-materialize\models\staging\. Here is an example of view configuration

{{ config(materialized = 'view', alias = 'stg_users', tags = ["staging"]) }}

SELECT registertime, userid, regionid, gender FROM {{ ref('src_kafka__users') }}

Review the model configuration in dbt_project.yml. The model configuration should have project name followed by names which should match with the structure of models directory

models:
  dbt_materialize_demo:
    materialized: view
    source:
      +materialized: source
      +schema: source
    staging:
      +schema: staging
      +materialized: view
    materialize:
      +schema: materialize
      +materialized: materializedview

Default materialized configuration can be specified at model project level. materialized configuration can be overriden at each directory level

Create views by running below command

dbt run --model tag:staging --target dev

Create materialized view from regular view. Materialized view store the results of the query continuously as the underlying data changes

Copy the model definition from dbt-materialize\demo-artifacts\models\materialize\ to dbt-materialize\models\materialize\. Here is an example of materialized view configuration

{{ config(materialized = 'materializedview', alias = 'mz_users', tags = ["materialized"]) }}

SELECT to_char(event_timestamp, 'YYYYMMDD') AS event_date, gender, count(gender)
FROM {{ ref('src_kafka__users') }}
GROUP BY event_date, gender

Build models by running below command

dbt run --model tag:materialized --target dev

Packages

dbt packages are in fact standalone dbt projects, with models and macros that tackle a specific problem area.

Create a new file named in packages.yml inside dbt-materialize directory and add package configuration

Specify the package(s) you wish to add

packages:
  - package: dbt-labs/codegen
    version: 0.5.0

Install the packages by running
```
dbt deps
```

Tests

Tests are assertions you make about your models and other resources in your dbt project (e.g. sources, seeds and snapshots).

Types of tests:

schema tests (more common)
data tests: specific queries that return 0 records

Generate the yaml for existing models by running

dbt run-operation generate_model_yaml --args '{"model_name": "mz_users"}'

schema tests can be added at table level OR column level. Here is an example of test under column definition in model yaml

version: 2

models:
  - name: mz_users
    description: ""
    columns:
      - name: event_date
        description: ""
        tests:
          - not_null

Execute tests by running below command
```
dbt test --models +tag:materialized
```

Validate data

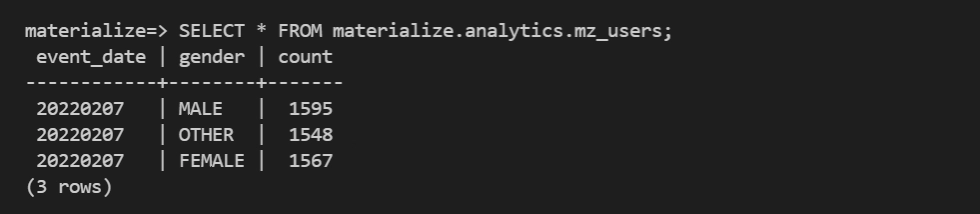

Validate data by running below sql in materialize cli

SELECT *
FROM materialize.analytics.mz_users;

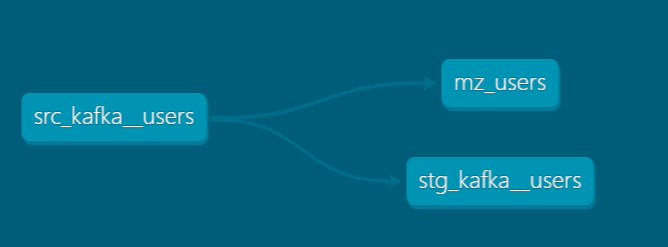

Docs

dbt docs provides a way to generate documentation for your dbt project and render it as a website.

You can add descriptions to models, columns, sources in the related yml file
dbt also supports docs block using the jinja docs tag
Copy sample jinja docs from dbt-materialize\demo-artifacts\docs\ to dbt-materialize\docs\
Generate documents by running
```
dbt docs generate
```
Publish the docs by running
```
dbt docs serve --port 8085
```
Stop published docs by running ctrl + c

Visualize in Metabase

Navigate to Metabase UI
Follow the instructions to finish the initial setup of Metabase
Use the following parameters to connect Metabase to your Materialize instance

Property Value

Database type PostgreSQL

Name mz_users

Host materialized

Port 6875

Database name materialize

Database username materialize

Database password Leave empty

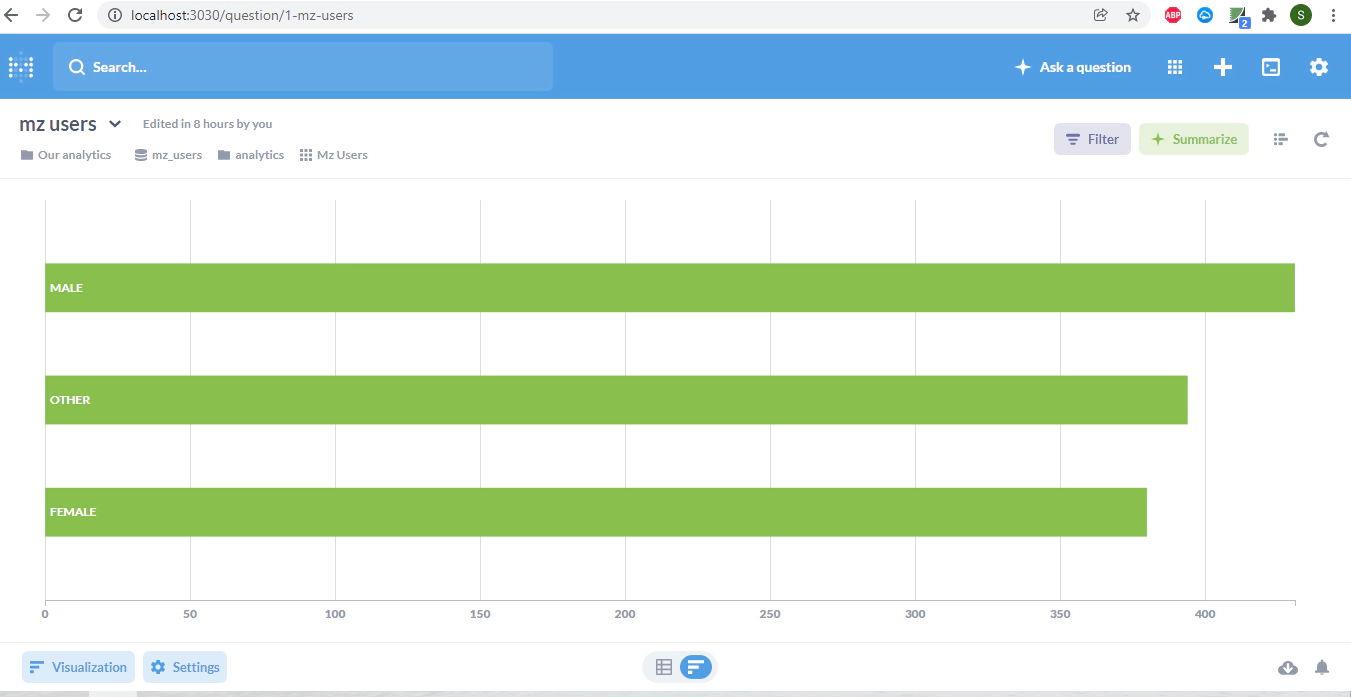

Now we should be able to browse the tables and create dashboards as the one shown below powered by real-time data from Materialize DB.

Property	Value
Database type	PostgreSQL
Name	mz_users
Host	materialized
Port	6875
Database name	materialize
Database username	materialize
Database password	Leave empty

Clean Demo Resources

Open a new terminal and cd into dbt-docker directory. Run the below command to delete the docker containers and related volumes

docker-compose -f docker-compose-materialize.yml down -v
docker-compose down -v --remove-orphans

Hope this was helpful. Did I miss something ? Let me know in the comments OR in the forum section.
