Prerequisites

• Install Confluent platform for your operating system following instructions here
• Install MongoDB for your operating system following instructions here
• Always make sure your system and packages are up to date using sudo apt-get update && sudo apt-get upgrade for Ubuntu and sudo yum update for CentOS

Steps

Before we setup the connectors, Lets import some test data in MongoDB.

• Download some sample dataset from “https://catalog.data.gov/dataset?res_format=CSV" to a directory in your MongoDB server

• cd into the directory and confirm file is available

  cd ~/sample_dataset;ls;


• Use mongoimport command to import the file

  mongoimport --type csv -d entechlog -c Accidental_Drug_Related_Deaths --headerline --drop Accidental_Drug_Related_Deaths_2012-2018.csv


  • type: The input format to import: json, csv, or tsv.
  • d: Specifies what database to use.
  • c: Specifies what collection to use.
  • headerline: Specifies first row in csv file is field names.
  • drop: Specifies to drop the collection before importing documents.

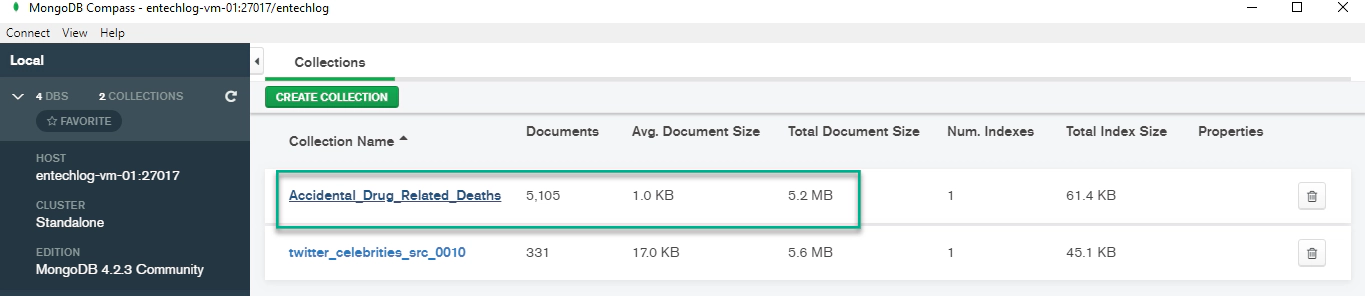

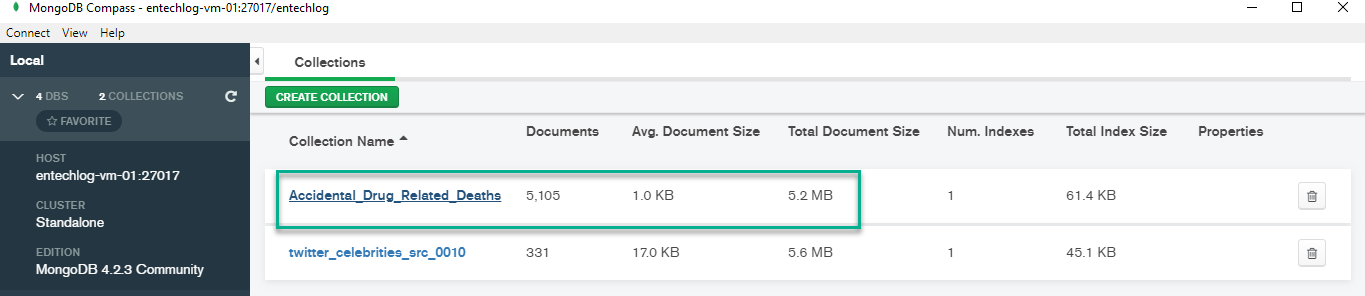

• Validate the data in MongoDB using MongoDB compass



• Install MongoDB Connector for Apache Kafka, See “https://www.confluent.io/hub/mongodb/kafka-connect-mongodb” for the instructions

• Make sure you have a replica set before configuring the connector. See “https://docs.mongodb.com/manual/tutorial/convert-standalone-to-replica-set/" for more details on how to enable replica set

• If you have replica set enabled then you can skip next few steps until the error message highlighted in red

  sudo systemctl stop mongod
  sudo systemctl edit --full  mongod
  ExecStart=/usr/bin/mongod --replSet rs0 --config /etc/mongod.conf
  sudo systemctl start mongod;sudo systemctl status mongod;


• Make sure to connect to a mongo shell and initiate the new replica set rs.initiate(), Validate the status using rs.status()

If you miss initiate step then connector will fail with

• Here is the config for a source connector with StringConverter serde. This will not register the schema in confluent schema registry

• You can either use curl OR postman OR control center UI to create the connector

  Curl

  curl -X PUT http://entechlog-vm-01:8083/connectors/ACCIDENTAL_DRUG_RELATED_DEATHS_0010_SRC_MONGODB/config -H "Content-Type: application/json" -d '{
    "name": "ACCIDENTAL_DRUG_RELATED_DEATHS_0010_SRC_MONGODB",
    "connector.class": "com.mongodb.kafka.connect.MongoSourceConnector",
    "key.converter": "org.apache.kafka.connect.storage.StringConverter",
    "value.converter": "org.apache.kafka.connect.storage.StringConverter",
    "connection.uri": "mongodb://admin:admin@entechlog-vm-01:27017/admin?authSource=admin&readPreference=primary&ssl=false",
    "copy.existing": true,
    "database": "entechlog",
    "collection": "Accidental_Drug_Related_Deaths",
    "publish.full.document.only": true,
    "topic.prefix": "dev.mongodb"
  }'

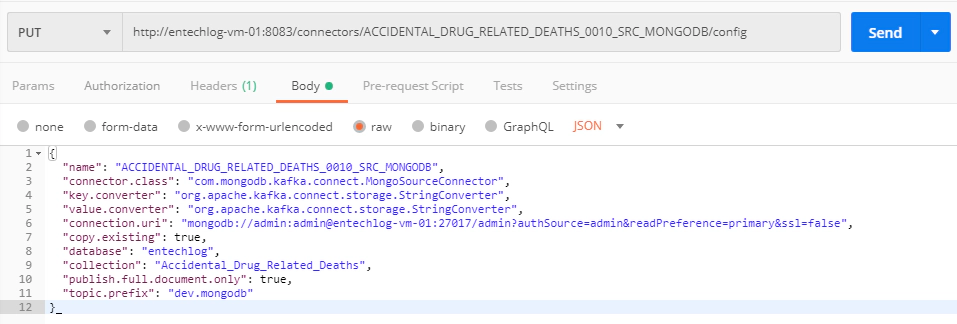

  Postman

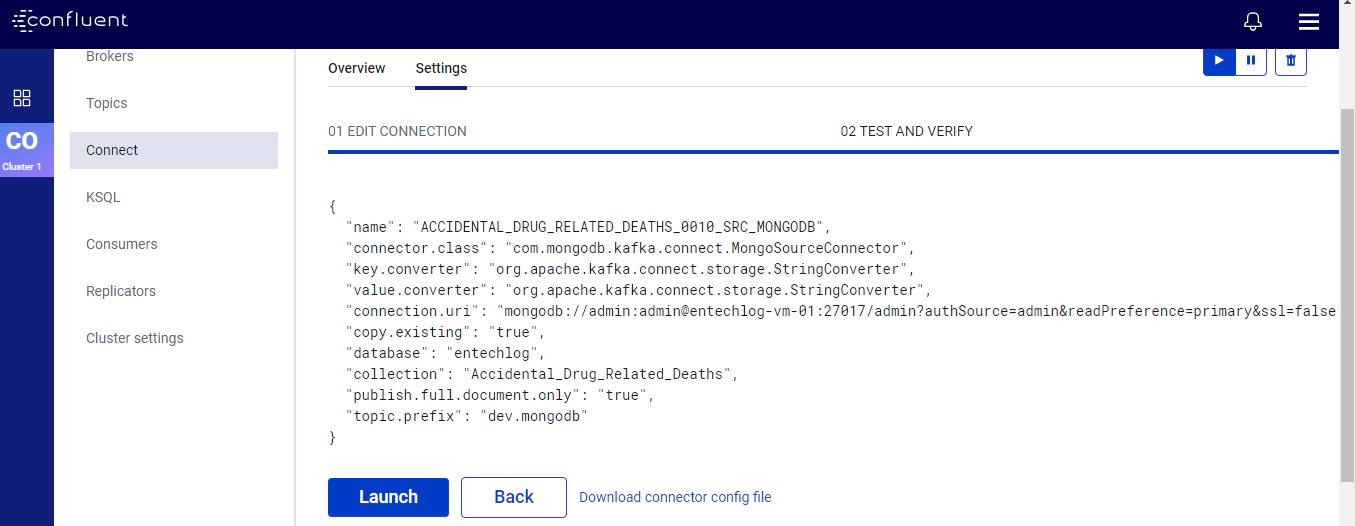

  Confluent Control Center

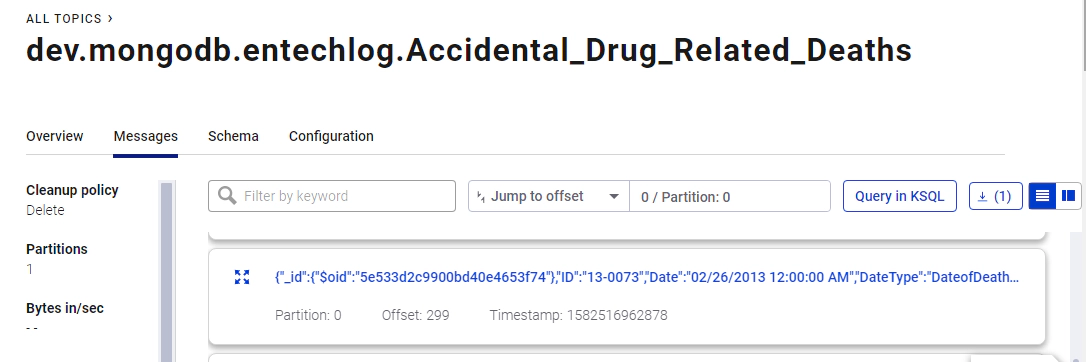

  Data in topic

• Since “StringConverter” did not register a schema, Tried creating connectors with “AvroConverter” and “JsonConverter” as both key and value converters. “AvroConverter” registered a schema with fields as “string” which is not useful.

  Connector Config - AVRO

  curl -X PUT http://entechlog-vm-01:8083/connectors/ACCIDENTAL_DRUG_RELATED_DEATHS_0020_SRC_MONGODB/config -H "Content-Type: application/json" -d '{
    "name": "ACCIDENTAL_DRUG_RELATED_DEATHS_0020_SRC_MONGODB",
    "connector.class": "com.mongodb.kafka.connect.MongoSourceConnector",
    "key.converter": "io.confluent.connect.avro.AvroConverter",
    "value.converter": "io.confluent.connect.avro.AvroConverter",
    "value.converter.schema.registry.url": "http://entechlog-vm-01:8081",
    "key.converter.schema.registry.url": "http://entechlog-vm-01:8081",
    "schema.registry.url": "http://entechlog-vm-01:8081",
    "connection.uri": "mongodb://admin:admin@entechlog-vm-01:27017/admin?authSource=admin&readPreference=primary&ssl=false",
    "copy.existing": true,
    "database": "entechlog",
    "collection": "Accidental_Drug_Related_Deaths",
    "publish.full.document.only": true,
    "topic.prefix": "dev.mongodb.avro"
  }'

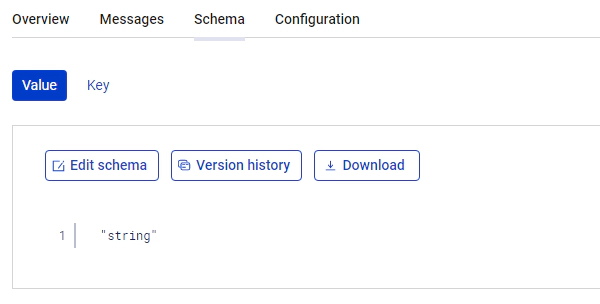

  Schema Registry - AVRO

  Connector Config - JSON

  curl -X PUT http://entechlog-vm-01:8083/connectors/ACCIDENTAL_DRUG_RELATED_DEATHS_0030_SRC_MONGODB/config -H "Content-Type: application/json" -d '{
    "name": "ACCIDENTAL_DRUG_RELATED_DEATHS_0030_SRC_MONGODB",
    "connector.class": "com.mongodb.kafka.connect.MongoSourceConnector",
    "key.converter": "org.apache.kafka.connect.json.JsonConverter",
    "value.converter": "org.apache.kafka.connect.json.JsonConverter",
    "value.converter.schema.registry.url": "http://entechlog-vm-01:8081",
    "key.converter.schema.registry.url": "http://entechlog-vm-01:8081",
    "schema.registry.url": "http://entechlog-vm-01:8081",
    "connection.uri": "mongodb://admin:admin@entechlog-vm-01:27017/admin?authSource=admin&readPreference=primary&ssl=false",
    "copy.existing": true,
    "database": "entechlog",
    "collection": "Accidental_Drug_Related_Deaths",
    "publish.full.document.only": true,
    "topic.prefix": "dev.mongodb.json"
  }'


References

• https://www.mongodb.com/blog/post/getting-started-with-the-mongodb-connector-for-apache-kafka-and-mongodb-atlas
• https://www.confluent.io/blog/getting-started-mongodb-connector-for-apache-kafka-and-mongodb/
